The Complete Guide to BTUs: How They Work, Types, Applications and Selection
A ball transfer unit (BTU) is a load-bearing component that enables smooth, omnidirectional movement of objects across a surface with minimal effort and no external power source. It consists of a large main ball seated on top of many smaller support balls inside a housing, allowing items placed on top to glide freely in any direction. Ball transfer units are widely used in manufacturing, logistics, aerospace, and material handling to move loads ranging from a few grams to several tonnes.
If you have ever watched luggage glide effortlessly across a conveyor at an airport, or seen automotive panels slide between workstations on an assembly line, you have seen ball transfer units at work. They are one of the simplest yet most effective solutions in modern material handling — and they have been solving movement challenges for over six decades. In this guide, we explain everything you need to know about ball transfer units: how they work, the different types available, where they are used, and how to select the right one for your application. Whether you are an engineer specifying components or a buyer sourcing a material handling solution, this is your starting point.
How Do Ball Transfer Units Work?
The operating principle of a ball transfer unit is straightforward. A single large ball — the main ball or load ball — sits at the top of the unit and makes contact with the object being moved. Beneath it, a cluster of smaller balls supports the main ball and allows it to rotate freely in any direction. The entire assembly sits inside a cylindrical housing.
When an object is placed on top of a group of ball transfer units, the main balls act as a low- friction surface. A gentle push is all that is needed to set the object moving, and because the main ball can rotate through 360 degrees, the object can travel in any direction — forwards, backwards, sideways, or diagonally — without needing to be lifted or realigned.
This omnidirectional capability is what distinguishes ball transfer units from rollers, which only move objects along a single axis. It makes BTUs ideal for applications where items need to change direction, rotate, or be positioned precisely on a work surface.
Key Components
Main ball: The large sphere at the top of the unit. Typically manufactured from carbon steel, stainless steel, or nylon depending on the application. The main ball carries the load and makes direct contact with the object being moved.
Support balls: Smaller ball bearings that sit beneath the main ball and enable it to rotate smoothly. These create the low-friction bearing surface that gives BTUs their characteristic ease of movement.
Housing: The outer body of the unit, available in carbon steel or stainless steel. The housing protects the internal mechanism and provides the mounting interface — whether that is a threaded stem, a flange, or a press-fit (drop-in) design.
Seal: Many ball transfer units include a felt or synthetic seal around the main ball. This prevents ingress of dust, debris, and moisture, extending service life — particularly important in industrial environments.
Types of Ball Transfer Units
Ball transfer units come in a wide variety of sizes, constructions, and material combinations. Understanding the main categories will help you narrow down the right solution for your application.
By Construction and Duty
Heavy-duty ball transfer units are precision-machined from solid steel and designed for high load capacities, typically ranging from 200 kg to over 5,000 kg per unit. They are used in demanding industrial applications such as air cargo handling, military logistics, and steel processing. Heavy-duty units often feature recirculating ball designs for maximum smoothness and durability.
Medium-duty ball transfer units bridge the gap between pressed-steel economy and machined precision. They are suitable for assembly lines, packaging operations, and general material handling where moderate loads need to be moved efficiently.
Light-duty ball transfer units are typically pressed from sheet steel and designed for lighter loads — from a few kilograms up to around 100 kg per unit. They are commonly used in packaging lines, office equipment, and consumer applications where cost-effectiveness is a priority.
Miniature ball transfer units are designed for precision applications where space is limited. They are found in measuring equipment, cleanroom material handling, photocopier mechanisms, and electronic assembly.
By Mounting Style
The way a ball transfer unit is fixed into its mounting surface is a critical selection factor.
Common mounting styles include:
• Flanged — Bolted to the surface via a flat flange with fixing holes. Provides secure, visible mounting and easy removal for maintenance.
• Threaded stem (stud/bolt) — Screws into a threaded hole in the mounting surface. Compact and versatile, suitable for ball tables and conveyor frames.
• Drop-in (press-fit/interference fit) — Pressed into a drilled hole for a flush, clean finish. Common in ball transfer tables and workstations.
• Clamped — Secured using an external clamp arrangement. Useful where the mounting surface cannot be drilled or threaded.
• Base fixing — Mounted from underneath the surface. Provides a completely flush top surface with no visible fixings.
By Material
Material selection depends on the operating environment, the nature of the items being moved, and any hygiene or corrosion requirements.
Carbon steel is the standard choice for general industrial applications. It offers excellent load capacity and durability at an economical price point. Carbon steel housings and balls can be hardened for added wear resistance.
Stainless steel is essential for applications involving moisture, chemicals, or hygiene requirements. It is the standard choice for food and beverage manufacturing, pharmaceutical environments, and outdoor or wash down applications.
Nylon balls are used where the items being moved have delicate or easily marked surfaces.
Nylon provides a softer contact point that will not scratch materials such as glass, polished metal, or painted surfaces.
Specialist Types
Spring-loaded ball transfer units incorporate an internal spring mechanism that absorbs shock and vibration. They are specified for applications where loads are placed onto the BTU surface with impact — for example, items being loaded from a crane or hoist.
Pneumatic pop-up ball transfer units can be raised and lowered using compressed air.
When retracted, the ball sits below the mounting surface, allowing items to rest stationary.
When activated, the ball rises above the surface to enable movement. This creates a switchable live/dead workstation — invaluable on assembly lines where items need to be positioned, worked on, and then moved to the next station.
Common Applications for Ball Transfer Units
Ball transfer units are used across a remarkably wide range of industries. Their ability to provide smooth, low-friction, omnidirectional movement makes them valuable wherever objects need to be conveyed, positioned, or transferred.
Manufacturing and Assembly
On production lines and assembly stations, BTUs enable components and work-in-progress items to be moved between machines and workstations without lifting equipment. They are particularly valuable in automotive manufacturing, white goods production, and electronics assembly, where items need to be rotated and precisely positioned during the build process.
Air Cargo and Aviation

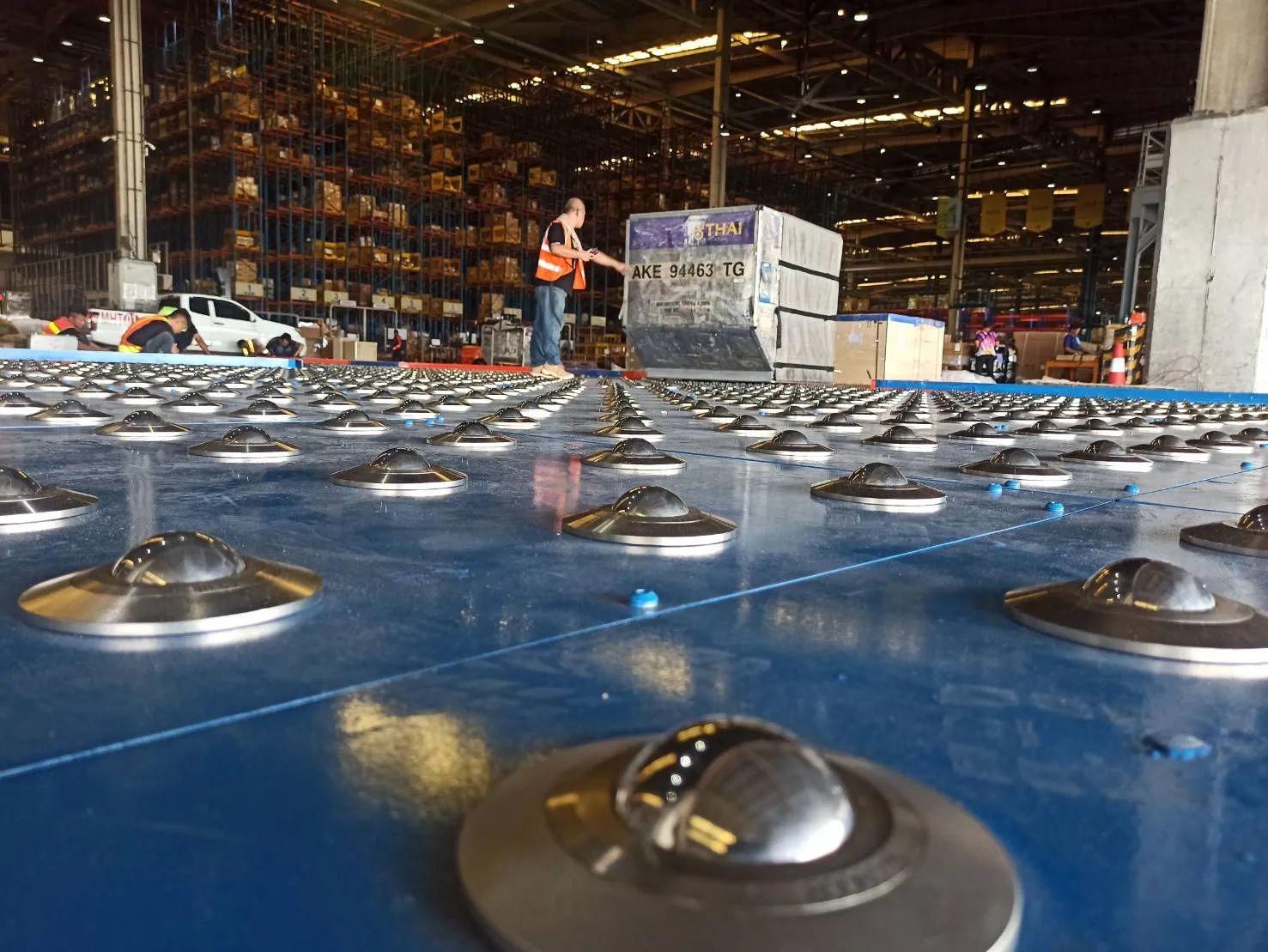

Ball transfer units are a critical component in air cargo handling systems. Ball decks — flat surfaces embedded with arrays of BTUs — are used to load and unload Unit Load Devices (ULDs) in aircraft, at cargo terminals, and on weighing stations. The omnidirectional movement they provide allows operators to guide heavy cargo containers with precision, improving turnaround times and reducing the risk of damage.
Warehousing and Logistics
In warehouses and distribution centres, ball transfer tables and conveyors facilitate the smooth transfer of packages, pallets, and containers between different sections of a
handling system. They are commonly found at conveyor junctions, packing stations, and loading docks, where items need to change direction or be sorted.
Glass Processing
The glass industry relies heavily on ball transfer units fitted with non-marking nylon balls. Glass sheets and panes are extremely vulnerable to scratching during handling, and nylon- balled BTUs provide the smooth, damage-free movement that glass processors require.
Military and Defence
Ball transfer units are used in a range of military and defence applications, including missile and warhead handling, naval stores management, and the loading of munitions onto aircraft. The combination of high load capacity, precision movement, and reliability under demanding conditions makes them ideally suited to defence logistics.
Food and Beverage
In food manufacturing environments, stainless steel ball transfer units withstand regular washdowns and meet the hygiene standards required for food-contact applications. They are used on production lines, packing stations, and in cold storage facilities.
How to Choose the Right Ball Transfer Unit
Selecting the correct ball transfer unit requires consideration of several key factors. Getting this right ensures optimal performance, longevity, and safety.
1. Load capacity. Calculate the total load that will be distributed across your ball transfer units, then determine how many units will share that load. Each unit must be rated to carry its share with an appropriate safety margin. Remember that dynamic loads (moving items) and static loads (stationary items) place different demands on the units.
2. Operating environment. Consider temperature, moisture, chemical exposure, dust, and hygiene requirements. These factors will determine whether you need carbon steel, stainless steel, or specialist materials. For high-temperature applications, standard lubricants may need to be replaced with specialist alternatives.
3. Surface sensitivity. If the items being moved have delicate, polished, or painted surfaces, specify nylon or other non-marking ball materials to prevent scratching or marking.
4. Mounting requirements. Choose a mounting style that suits your installation. Consider whether the mounting surface can be drilled, whether a flush finish is required, and how accessible the units need to be for maintenance.
5. Speed and frequency of use. Applications involving continuous, high-speed movement will demand more robust units than those handling occasional, low-speed transfers. Heavy- duty machined units are better suited to demanding duty cycles.
6. Special requirements. Shock loading, vibration, the need for live/dead switching (pneumatic units), or operation in extreme temperatures will all influence your choice. If your application has unusual requirements, speak to the manufacturer — bespoke solutions are often available.
Ball Transfer Units vs Rollers and Casters
Ball transfer units are not the only option for moving items across surfaces, but they offer distinct advantages over the main alternatives.
Rollers move objects along a single axis — forwards and backwards. They are effective for straight-line conveying but cannot provide the directional flexibility of a BTU. If your items need to change direction, rotate, or be positioned at angles, ball transfer units are the better choice.
Casters are designed to be attached to the object being moved (such as the underside of a trolley). Ball transfer units, by contrast, are fixed to the surface over which items travel. Casters also suffer from trailing — the wheels must align with the direction of travel before movement can begin — whereas BTUs provide instant directional change.

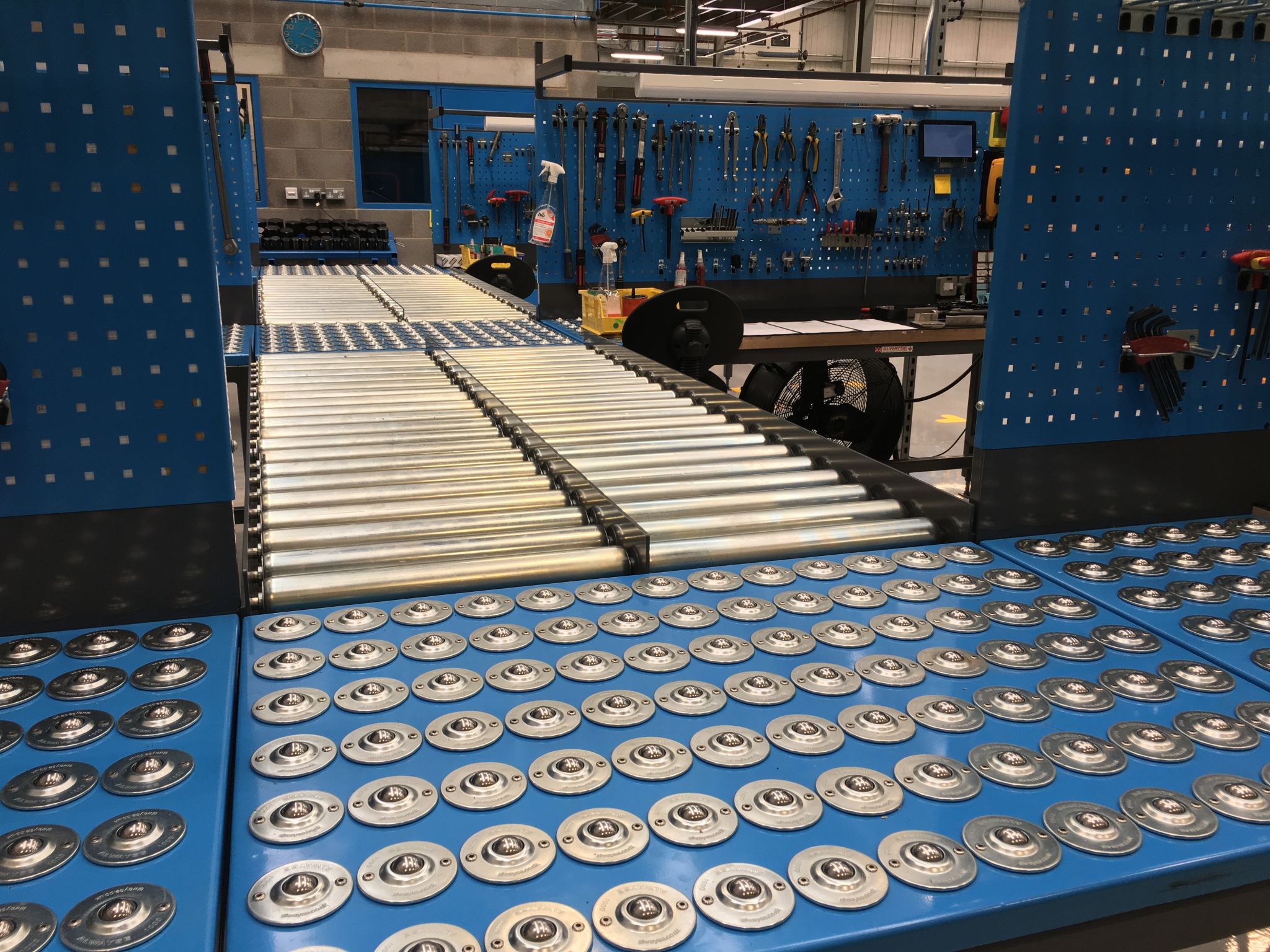

In many material handling systems, ball transfer units work alongside rollers and other conveyor elements. BTUs are typically placed at junctions, workstations, and transition points where omnidirectional movement adds the most value.
Why Choose Alwayse Ball Transfer Units?
Alwayse Engineering has been designing, manufacturing, and distributing ball transfer units from Birmingham, UK, for over 85 years. With more than 150 products in the range — the widest of any manufacturer — and distribution across more than 70 countries, Alwayse offers a solution for virtually any application.
Every Alwayse ball transfer unit is manufactured to exacting standards, with options spanning heavy-duty machined units through to lightweight pressed-steel designs. Carbon steel, stainless steel, and nylon ball options are all available, along with a comprehensive range of mounting styles including flanged, threaded, drop-in, clamped, and base fixing.
Alwayse also offers bespoke design and manufacturing for applications where standard units are not a perfect fit. With in-house engineering expertise built over eight decades, the team can work with you to develop a ball transfer solution tailored to your specific requirements.
Ready to find the right ball transfer unit for your application? Use the Alwayse Brief Builder tool on our website to describe your requirements, or contact our team directly at sales@alwayse.co.uk or +44 (0)121 380 4700.
Frequently Asked Questions
Below are answers to the most common questions about ball transfer units. This section is structured for FAQ schema markup on the Alwayse website.
What is a ball transfer unit used for?
A ball transfer unit is used to move objects smoothly across a surface in any direction without the need for lifting equipment or external power. Common uses include moving packages on conveyor systems, positioning components on assembly lines, handling cargo at airports, and transferring materials between workstations in manufacturing.
How much weight can a ball transfer unit support?
Load capacity varies widely depending on the type and size of the unit. Miniature BTUs may support loads as low as 5 kg, while heavy-duty machined units can handle loads of 5,000 kg or more per unit. The total load capacity of a ball transfer table depends on the number of units installed and how the load is distributed across them.
What is the difference between a ball transfer unit and a roller?
A roller moves objects in a single direction along its axis — typically forward and backward. A ball transfer unit allows objects to move in any direction, including sideways, diagonally, and rotationally. This makes BTUs ideal for applications requiring directional flexibility, precise positioning, or changes of direction.
Can ball transfer units be used in food manufacturing?
Yes. Stainless steel ball transfer units are designed for environments that require regular washdown and strict hygiene standards. They resist corrosion and are suitable for use in food and beverage production lines, pharmaceutical manufacturing, and other cleanroom or sanitary environments.
Do ball transfer units require maintenance?
Most ball transfer units are lubricated for life and require minimal maintenance under normal operating conditions. However, units operating in harsh environments — with heavy dust, debris, or chemical exposure — may benefit from periodic inspection and cleaning. Some heavy-duty units are designed to be user-serviceable, with replacement seals and service kits available.
What is a ball transfer table?
A ball transfer table is a flat surface fitted with an array of ball transfer units, creating an omnidirectional conveying platform. Items placed on the table can be pushed, pulled, or guided in any direction with minimal effort. Ball transfer tables are used in warehouses, factories, loading docks, and cargo terminals.
Are ball transfer units suitable for outdoor use?
Stainless steel ball transfer units are resistant to corrosion and can be used in outdoor applications. For harsh outdoor environments with exposure to saltwater or chemicals, fully stainless steel construction is recommended. Discuss your specific environment with the manufacturer to ensure the right material specification.
